MAHR 5357035 Linear 100 external-/internal
by Mahr
ID#:
5357035-MHR
产品信息
Description

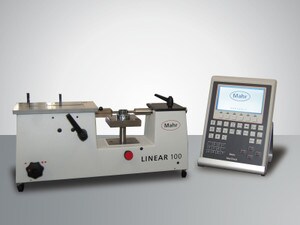

The LINEAR 100 is a universal, easy-to-operate length measuring instrument for quick and precise outside and inside measurements up to 100 mm, directly on the production line. The simple design of the instrument speeds up the measurement process and makes it quick and easy to adapt to new measuring tasks.Specifications
- Range:Direct: 50 mm Inner: 0 to 100 mm Outer: 15 to 100 mm
- Accuracy:Measuring uncertainty MPEE1 (L in mm) [µm]: ≤ (0,7 + L/1000)
- Details:Device length [mm]: 260
- Specifications:Measuring forces [N]: 1 or 3
Features
- Cushioned measuring spindle with 2 pre selectable measuring forces
- Constant measuring force over the entire measuring range
- Complies with Ernst Abbe's comparator principle for outer measurements
- Infinitely adjustable measuring table height for accurate adjustment of measuring positions
- Combined outer/inner measurement possible without the need for recalibration
- Easy change measuring anvils can be selected to match specific measuring tasks
- Sturdy cast body to eliminate stresses and bending errors
- Height adjustable support tables for inner and outer measurements
- MarCheck measurement display (with optional stand): including 2 channels, USB connection for printer or stick, USB connection for PC, and RS 232 interface for easy transfer of measured values to PCs
- Measured values can be transferred to all MS Windows® programs (e.g. Microsoft Excel®) via the MarCom software (optional)
- Various accessories available upon request
OPTIONAL ACCESSORIES
| ID# | Product Name | Price |
|---|---|---|
| 5357036-MHR | MAHR 5357036 Internal Jaws for Linear 100 Checks > 15MM Diameters (Pair) | $2,037.82 |
| 5357052-MHR | MAHR 5357052 Floating Center Support for LINEAR 100 | $7,410.26 |
| 5357055-MHR | MAHR 5357055 108 degree vee for roundness measurement on LINEAR 100 | $844.55 |
| 5357059-MHR | MAHR 5357059 50 MM SETTING RING for LINEAR 100 | $284.62 |
| 5357061-MHR | MAHR 5357061 HOLLOW CENTERS, 60 DEGREE for LINEAR 100 | $137.31 |
| 5357064-MHR | MAHR 5357064 2.0 MM DIAMETER FLAT CONTACT for LINEAR 100, O.D. MEASURES | $459.87 |
| 5357066-MHR | MAHR 5357066 BLADE CONTACTS FOR LINEAR 100 0.75MM X 6.5MM X 7.0MM | $792.24 |
| 5357067-MHR | MAHR 5357067 M2.5 THREAD MEASURING INSERTS for LINEAR 100, O.D. MEASURES | $661.47 |
| 5357068-MHR | MAHR 5357068 14MM DIAMETER FLAT CONTACTS for LINEAR 100, O.D. MEASURES | $484.94 |
| 5357070-MHR | MAHR 5357070 MEASURING PROBES FOR DIA >30MM for LINEAR 100 | $1,318.59 |
| 5357260-MHR | MAHR 5357260 Kit, Od Measurement for Linear 100 | $2,550.00 |
