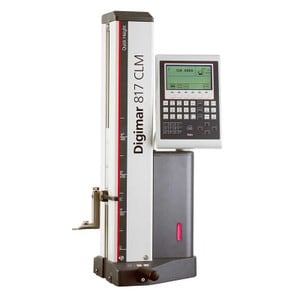

Mahr 4429011 817 CLM-2D Height Gage; 600mm- 24" Range

by Mahr
ID#: 4429011——mhr
| MFGID: 4429011
Sale
Sale Price:
$8,304.00
QuoteRequired
MSI Viking exclusive sale price good until June 30, 2022
Quantity Price
Add Calibration w/ Certificate?
No
  • No
  • Yes- A2LA Calibration Height Gage: Motorized - MicroHite - DigiHite - Digimar w/o Master(+ $173.00)
Request Info
追求ions? CallCall Us864.433.9771 | Mon-Fri 8-5 EST

Product Information

Description

Mahr 817 CLM 2D Height Gage 24". Range 24"-600mm; Application Range: 30.31"-770mm. Resolution 0.001", 0.0005", 0.0001", 0.00005", 0.00001",-0.01, 0.005, 0.001, 0.0005, 0.0001mm.. Measures: Bores, Slots, Widths, Grooves, Bore Centers Slot Centers, surfaces, Depths and Min-Max Flatness, Shaft diamete...

Specifications

  • Range:0-600 mm|0-24 inch
  • Type:电子、多分辨率
  • Accuracy:(1.8+L-600). L IN mm
  • Details:Data Interface: USB, RS232C, Wireless
    Measuring Force: 1.0 +/-0.2 N
  • Resolution:0.01 mm|0.005 mm|0.001 mm|0.0005 mm|0.0001 mm|.001 inch|.0005 inch|.0001 inch|.00005 inch|.00001 inch
