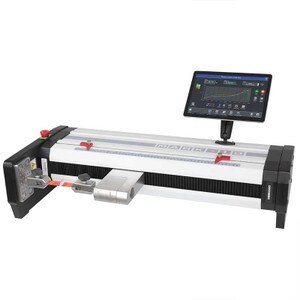

Mark-10F505H-IMT Test frame w/ IntelliMESUR® tablet control panel, horiz, 500 lbF / 2.2 kN

由Mark-10
ID#: F505H-IMT-MRK
| MFGID: F505H-IMT
Your Price:
$12,065.00
数量 价格
Request Info
Questions? CallCall Us864.433.9771 | 星期一至周五8-5 EST

产品信息rmation

Description

速度范围： 0.02 – 45 in/min
[0.5 – 1,100 mm/min]
Load accuracy
(% of full scale)
  • Test frame: ±0.1%
  • Force sensor alone: Series FS05: ±0.1% | Series R07: ±0.15%
Load sampling rate: 20,000 Hz
Data acquisition rate: 1,000 Hz
Speed accuracy: ±0.2% of setting, virtually no variation with load
距离准确性： ±0.002 in [0.05 mm], factory-compensated at up to full load
Distance resolution: 0.0005英寸(0.01毫米)
Limit switch repeatability: [0.03毫米]中的±0.001

Specifications

  • Details:

    The F105-IMT, F305-IMT, F505-IMT, and F505H-IMT advanced test frames are shipped as shown at left, and includes the following accessories:

    （1）控制面板，安装支架和硬件
    (1) Mounting bracket, column end (F505H only)
    (1) USB cable
    (1) #10-32M medium hook
    (1) 5/16-18M large hook
    (1) # 10-32F 2”直径受压ssion plate
    (1) #10-32 M/F 2” extension rod
    (1) #10-32 F/F coupler
    (1) Adapter, 5/16-18M to #10-32F
    (1) Set screw, #10-32 x 3/4”
    (2) Hex nut, #10-32
    (1) Power cord
    (1) Allen wrench set
    （1）NIST可靠的校准证书，力证书

OPTIONAL ACCESSORIES

ID# 产品名称 价格
FS05-012-MRK Mark-10FS05-012 Force sensor, 0.12 lbF / 2 ozF / 50 gF / 0.5 N / 500 mN $1,116.25
FS05-025-MRK Mark-10FS05-025 Force sensor, 0.25 lbF / 4 ozF / 100 gF / 1 N / 1000 mN $1,116.25
FS05-05-MRK Mark-10 FS05-05力传感器，0.5 lbf / 8 OZF / 250 GF / 2.5 N / 2500 MN $1,116.25
FS05-10-MRK Mark-10FS05-10 Force sensor, 10 lbF / 160 ozF / 5 kgF / 5000 gF / 50 N $969.00
FS05-100-MRK Mark-10FS05-100 Force sensor, 100 lbF / 1600 ozF / 50 kgF / 50000 gF / 500 N $969.00
FS05-2-MRK Mark-10FS05-2 Force sensor, 2 lbF / 32 ozF / 1 kgF / 1000 gF / 10 N $969.00
FS05-20-MRK Mark-10FS05-20 Force sensor, 20 lbF / 320 ozF / 10 kgF / 10000 gF / 100 N $969.00
FS05-200-MRK Mark-10FS05-200 Force sensor, 200 lbF / 3200 ozF / 100 kgF / 1000 N / 1 kN $1,116.25
FS05-300-MRK Mark-10FS05-300 Force sensor, 300 lbF / 4800 ozF / 150 kgF / 1500 N / 1.5 kN $1,116.25
FS05-5-MRK Mark-10FS05-5 Force sensor, 5 lbF / 80 ozF / 2.5 kgF / 2500 gF / 25 N $969.00
FS05-50-MRK Mark-10FS05-50 Force sensor, 50 lbF / 800 ozF / 25 kgF / 25000 gF / 250 N $969.00
FS05-500-MRK Mark-10FS05-500 Force sensor, 500 lbF / 8000 ozF / 250 kgF / 2500 N / 2.5 kN $1,116.25

PRODUCT SERIES

ID# 产品名称 价格
F105-IMT-MRK Mark-10F105-IMT Test frame w/IntelliMESUR® tablet control panel, vert, 100 lbF / 0.5 kN $9,167.50
F305-IMT-MRK Mark-10 F305-IMT测试框架W /Intellimesur®平板电脑控制面板，Vert，300 lbf / 1.5 kn $10,212.50
F505-IMT-MRK Mark-10F505-IMT Test frame w/ IntelliMESUR® tablet control panel, vert, 500 lbF / 2.2 kN $11,447.50
F505H-IMT-MRK Mark-10F505H-IMT Test frame w/ IntelliMESUR® tablet control panel, horiz, 500 lbF / 2.2 kN $12,065.00
