Mitutoyo 542-173 Linear Gage 2"/50mm Range 0.0005mm Resolution

by Mitutoyo
ID#: 542-173-MIT
| MFGID: 542-173
Your Price:
$941.35
Quantity Price
Add Calibration w/ Certificate?
No
  • No
  • Yes- A2LA Calibration LVDT Probe(+ $65.00)
Request Info
Questions? CallCall Us864.433.9771 | Mon-Fri 8-5 EST

产品信息

Description

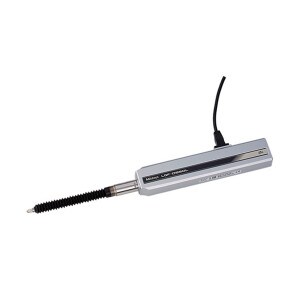

Mitutoyo 542 Series, 542-173 Linear Gage features an accuracy of (1.5+L/50) with 1µm,0.5µm or 0.1µm Resolution. The length standard is Photoelectric linear encoder with a max response speed of 1500mm/s. It also features a 3mm carbide contact point, 15mm stem, stroke ball bearing type and a measuring force of 5.7N/5.3N/4.9N. The cable length is 80" / 2m and has IP66 level of protection from dust and water.

Specifications

  • Range:2" / 50mm
  • Accuracy:(1.5+L/50)µm
  • Resolution:0.0005mm
