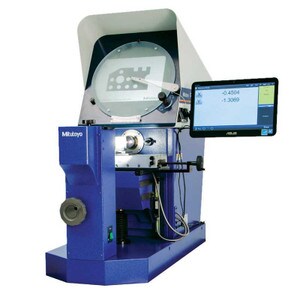

Mitutoyo 64PKA155A PH-A14 Horizontal Profile Projector with M2 and Edge Detection

Description

Mitutoyo 64PKA155A PH-A14 Horizontal Bench-style Profile projector with 14" Screen features lens technology and workmanship that are combined to provide a bright, crisp image for error free inspection. This model is equipped with Linear Glass Scales, Horizontal projector equipped with highly accurate linear glass scales and touch screen M2 geometric measurement display. The PH-A14 has a generous x,y work stage travel (8"x4") that provides users with ample range to cover application needs. The location of the Y-axis handle improves ease of operation while the work stage provides high accuracy and can handle a workload of up to 100 lbs. A Fiber illuminator is a standard accessory. Magnifications include 10X (standard), 20X, 50X and 100X (optional). *Lenses, Options and Accessories SOLD SEPARATELY. Please contact Customer Service to determine the necessary specifications for your needs.
