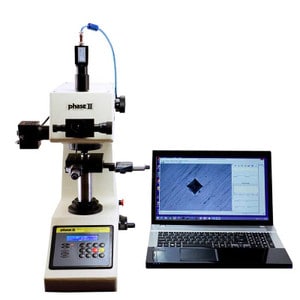

Phase II 900-390A Micro Vickers Hardness Tester with Manual Software
by Phase II
ID#:
900-390A
箴duct Information
Description
Phase II 900-389 Fully Automated Twin Rockwell Superficial Hardness Tester Z -Axis This Micro Vickers hardness tester 390A–Includes Video Cam, Adapter and Manual Measurement Software and is a precise testing system suitable for hardness analysis of metallic specimens in metallography laboratories or production environments. Software for 900-390A can be upgraded to 900-390B.Specifications
- Specifications:Testing Range: 1HV-2967HV
Test Force: 0.098N(10g), .246N(25g), .49N(50g), 0.98N(100g) 1.96N(200g), 4.90N(500g), 9.80N(1000g)
Max Height of the Specimen: 70mm
Max Distance from the Indenter Center to the Instrument Panel: 95mm
Lens-indenters with: With Hand Turret
Carriage Control: Automatic (loading-holding-up of the load-unloading)
Amplification of the microscope: 100x, 400x
Dwell Time of the Test Force: (5-60)S
Min.Graduation Value of the Testing Drum Wheel: 0.25µm
Dimension of the XY Table: 100x100mm
Movement Field of the XY Table: 25x25mm
