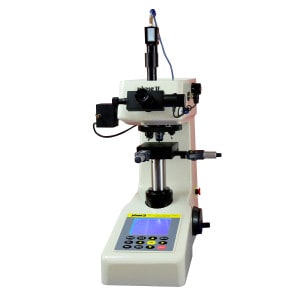

Phase II 900-392D Micro Vickers Knoop Hardness Tester with Auto Turret
by Phase II
ID#:
900-392D
产品有限公司mation
Description
Phase II 900-392C Micro Vickers Knoop Hardness Tester with Auto Turret . The Phase II 900-392 Series micro-vickers hardness testers include Auto-Turrett, Video Cam, Adapter, USB Output Cable and a choice of 6-variants of Measurement software giving you the capabilities of machines that cost thousands more. The 900-392 Micro Vickers hardness tester covers the load range from 10g to 1kg.Model No. 900-392D Includes Video cam, adapter and Turret control w- Auto-Measurement software.
Conforming to ASTM E-384-92 vickers hardness testers standards, the 900-392 series micro vickers hardness testers will offer unmatched repeatability. This micro Vickers hardness tester can toggle back and forth between Vickers and Knoop measurement since this machine is equipped with both indentors. A perfect rugged performer suited for any environment, the Phase II vickers hardness testers are offered with a 5 year warranty and free lifetime technical support.
Specifications
- Specifications:6 Measuring Objectives: 10x, 20x, 40x
Test Forces: (gf) and (Nm) 10, 25, 50,100, 200, 300, 500, 1000(1K) gf 98, 245, 490, 980, 1960, 2940, 4900, 9800 Nm
Test Scales: Vickers Scales: HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1
Knoop Scales:: HK0.01, HK0.025, HK0.05, HK0.1, HK0.2, HK0.3, HK0.5, HK1
Test mode: HV - HK
Test force application: Automatic –Loading-Dwell-Unloading
X-Y Testing Table: Dimension: 100×100mm; Travel: 25×25 mm; Revolving power: 0.002mm
Selection of hardness scale conversions
Dwell time of the test force: 0~90s (5 sec increments)
Turrett: Toggle between indenters and objectives: Automatic and manual selectable
