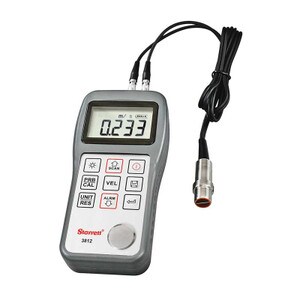

Starrett 3812 Ultrasonic Thickness Gage
by Starrett
ID#:
3812-STR
Product Information
Description
Starrett 3812 Starrett 3812 Ultrasonic Thickness Gage. Ultrasonic Thickness Gage is a menu driven, multifunctional tester with basic measurement capabilities. This gage is designed to measure the thickness of metallic and non-metallic materials such as aluminum, titanium, plastics, ceramics, glass and any other good ultrasonic wave conductor, as long as it has parallel top and bottom surfaces. The 3812 will accurately display readings in either inch or millimeter after a simple calibration to a known thickness or sound velocity.Specifications
- Range:0.040-12.0" measuring range (in steel with standard probe)
- Accuracy:± (0.5% thickness + .001")
- Details:32-122°F operating temperature, 20 memory groups (100 files-group)
- Specifications:电源:两个3 v与美联社AA碱性电池proximately 100hours of life (with the backlight off)
- Resolution:Minimum display unit: 0.001" (0.01mm) selectable
Info and Guides
OPTIONAL ACCESSORIES
| ID# | Product Name | Price |
|---|---|---|
| PT28287-STR | Starrett PT28287 Coupling Gel - 8 oz. for 3807 and 3812 Ultrasonic Thickness Gages | $38.40 |
PRODUCT SERIES
| ID# | Product Name | Price |
|---|---|---|
| 3807-STR | Starrett 3807 Ultrasonic Thickness Gage | $1,618.00 |
