Starrett AVX550 AVX550 CNC Large Format Automatic Vision System
by Starrett
ID#:
AVX550-STR
Product Information
Description

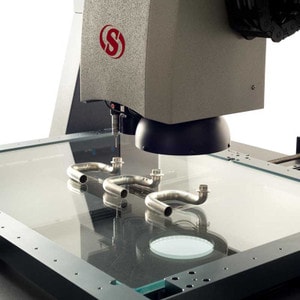

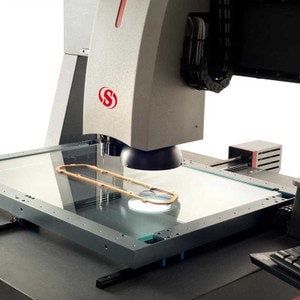

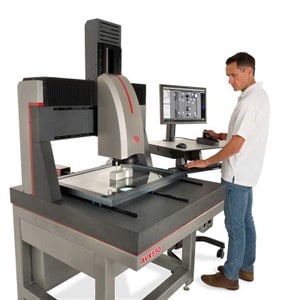

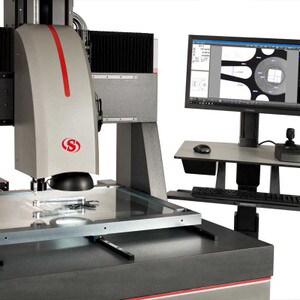

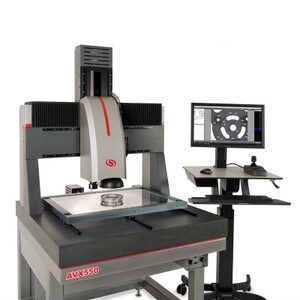

Starrett AVX550 CNC Automatic Large Format Vision Metrology Systemis Accurate, Flexible & Ideal for Large Platform Measurement. Dual camera inputs allow users to inspect parts at multiple levels without changing lenses or re-calibrating. Large format platform stage: 22x16x10(550mmx 400mm x250mm). Its Metlogix M3 software with video edge detection is extremely user friendly and intuitive LED lighting 24 touchscreen monitor and PC Dedicated 12:1 zoom optics Choice of .14x-4x telecentric optics Linear guide X-Y tranport for ultra smooth, high speed positoning Ideal for use in QC labs, research, engineering, or manufacturing environments where large parts with intricate features need inspectionSpecifications
- Range:X= 22" / 550mm, Y= 16" / 400mm, Z= 10" / 250mm
- Type:Vertical, Floor standing
- Accuracy:X,Y= E2= 2.5µm + 5L/1000, Z= E1= 2.5µm + 5L/1000
- Specifications:Features
Larger Format X-Y-Z Travel:22x16x10 (550mmx400mmx250mm)Choice of dual camera inputs allowing for measurement on maco and micro levels Granite base provides superior machine stability and precision Metlogix M3 software 24 touchscreen PC LED surface ring illumination LED transmitted illumination LED coaxial illumination Integrated motion control unit Video edge detection (VED) Field of view (FOV) measurements integrated with stage motion Digital video camera: 1.2 MP, 1/3 SXVGA sensor H x W x D for AVX: 78 x 40.4 x 41.3 (1980mm x 1025mm x 1050mm) W x D for cart: 26 x 26 (660mm x 660mm)
Options可尔刚omic work station icluding a compact control panelCNC rotary axis fixtures Renishaw touch probe kits and changing racksCalibration standardsPart fixtures and work holding devices - Resolution:4µin (0.1µm)
