Starrett HVR100 HVR100-FLIP Digital Video System
by Starrett
ID#:
HVR100-STR
产品信息
Description

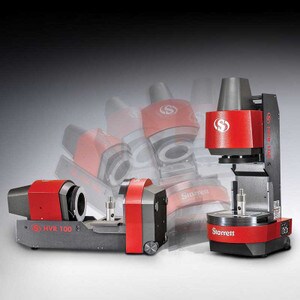

Starrett HVR100-FLIP is the latest in a line of video-based measurement systems. The HVR100 has the unique characteristic of being used in either a vertical or horizontal format offering tremendous versatility and value. Rapidly measure a single feature, an entire part, or multiple parts up to 3.65 x 3" with the new HVR100. MetLogix M3 software allows for easy one-touch feature measurement and auto-detect part recognition. Features DXF Import and export, graphic based "Part View" constructions and more. Optional software modules are available for profile fitting, wire insulation and thread measurement.Specifications
- Range:Measures parts up to 3.65 x 3"
- Type:Hoizontal, Vertical, Bench top
- Accuracy:Within 0.010mm
- Specifications:Horizontal, Vertical, Digital
Info and Guides
OPTIONAL ACCESSORIES
| ID# | Product Name | Price |
|---|---|---|
| 4320-1-STR | Starrett 4320-1 Workstation | $2,027.73 |
| 4336-STR | Starrett 4336 Workstation Extension for Left or Right | $953.60 |
| 8010-STR | Starrett 8010 Modular fixturing kit | $1,977.60 |
| 8440-1-STR | Starrett 8440-1 4" x 7" Calibration standard for pixel calibration and verification NIST traceable | $1,497.60 |
| M3-PD-STR | Starrett M3-PD MetLogix Conversion of DXF to PDF | $1,600.00 |
| M3-PF-STR | Starrett M3-PF MetLogix Profile Fitting Module | $1,600.00 |
| M3-TM-STR | Starrett M3-TM MetLogix Thread Module | $1,600.00 |
