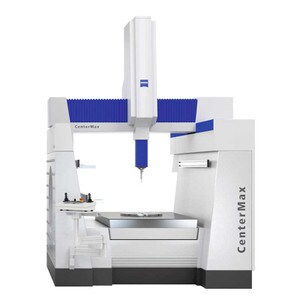

ZEISS CenterMax Production CMM Machines

Description

ZEISS CenterMax Production CMM - Unparalleled Stability.
CenterMax导航器可以直接集成into a production line. Vibrations from processing centers are effectively damped. Its variable workpiece base makes it ideal for automated loading.

Coordinate measuring technology for production
Machine design optimized for integration
Temperature stability from +15C to +40C
Pneumatic vibration insulation
Robust machine design

Temperature Variable Accuracy (TVA)
测量机的精度通常是唯一的given for the ideal temperature. Not with CenterMax: thanks to the TVA formula, the accuracy of this system can be exactly determined for different temperatures.

navigator technology package
Automatic generation of the ideal measuring strategy
Tangential approach
Helix scanning
Dynamic stylus calibration

VAST Performance Kit
FlyScan
QuickChange

Options
Touchscreen unaffected by oil and dirt
Pneumatic stylus rack
Safety equipment
Rotary table
Gantry design with raised guideways
CenterMax is designed as a processing center. This design ensures high rigidity with a measuring volume of more than one cubic meter. The raised guideways minimize the moving mass, which is a benefit to dynamic stability and precision. Furthermore, the sensitive guideway elements are outside the loading zone.

Invar steel carrier
The weight-bearing skeleton of CenterMax is made of Invar steel, which features a very low expansion coefficient and thus extremely temperature-stable.

Cast rock base
The cast rock base provides the required mass for stabilization. This material is known for its ideal thermal and dynamic damping properties.

Active vibration damping
CenterMax comes standard with four active vibration dampers. Under and over-pressure are automatically compensated.

Variable workpiece base
Without a lot of work, a granite plate or pallet carrier frame with feeding system can be installed via the variable workpiece base without sacrificing the measuring range.

Workpiece-capable operating station
Ideal for the workshop and glover-wearers, the operating station is suitable for the shop floor (IP54) and can be moved as needed. A touchscreen, PC, printer and all control elements are integrated.
